Generally, the handling of liquid hydrogen presents unique engineering challenges due to its extremely low temperature. Valves used in liquid hydrogen service must be designed to withstand these cryogenic conditions while ensuring safe and reliable operation. This article explores the critical role of liquid hydrogen valves in various applications and highlights the advancements in valve technology that enable the efficient handling of this important energy carrier.
Key Design Considerations for Liquid Hydrogen Valves
Liquid hydrogen valves require specialized design features to prevent leaks, minimize heat transfer, and ensure reliable performance at cryogenic temperatures. Materials must be carefully selected to maintain their integrity and avoid embrittlement. Sealing mechanisms must provide a tight shutoff, even under extreme temperature variations. Insulation is crucial to minimize heat ingress and prevent the formation of vapor.
Vacuum Jacketing and Extended Bonnets: To minimize heat transfer, liquid hydrogen valves often incorporate vacuum jacketing. This creates an insulating layer that reduces heat flow from the surrounding environment. Extended bonnets are also used to move the packing gland away from the cold zone, preventing freezing and ensuring proper sealing.
Specialized Materials and Sealing: Materials such as stainless steel and certain polymers are commonly used in liquid hydrogen valves due to their ability to withstand cryogenic temperatures. Sealing materials like PCTFE (Polychlorotrifluoroethylene) are also employed to maintain a tight seal and prevent leaks.
Applications and the Neway Liquid Hydrogen Valve

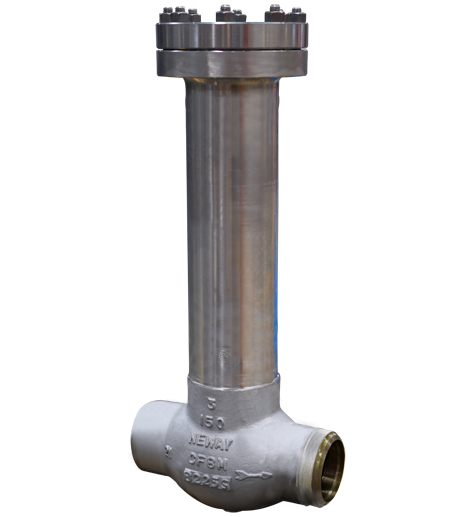

Liquid hydrogen valves are essential in various applications, including hydrogen production, storage, transportation, and utilization. They are used in fueling stations for hydrogen-powered vehicles, in aerospace applications for rocket propulsion, and in industrial processes that utilize hydrogen as a feedstock. Neway offers liquid hydrogen valves, including liquid hydrogen lift check valves, designed to meet the stringent requirements of these applications. The dimension of Neway liquid hydrogen valve is 1/2″-6″, with Pressure Rating of 150LB-600LB. Connection Type includes SW, BW, RF and the valve can operate in the Temperature Range of -253°C~+80°C with Lifting Type structure. The Neway Valve incorporates features such as an extended valve body with vacuum-jacketed construction, a guided disc with a spring-return mechanism, and a PCTFE-incorporated extended stem.
Conclusion
In conclusion, liquid hydrogen valves play a critical role in the safe and efficient handling of liquid hydrogen. Advancements in valve technology, such as vacuum jacketing, specialized materials, and innovative sealing designs, have enabled the reliable operation of these valves in demanding cryogenic applications. As the use of hydrogen as an energy carrier continues to grow, the importance of high-performance liquid hydrogen valves will only increase.
